Gas Mass Flowmeters & Temperature Transmitters

Industry Leader in Accuracy with Award-winning and Innovative Products

The Gas-SelectX® gas selection feature from Fox Thermal is light years ahead of the competition with accuracy far superior to selection systems offered by our competitors. Changing gas composition in the field with Gas-SelectX® provides unmatched convenience. Fox continually beats the competition with high quality flow meters and superior customer service. Contact Fox Thermal today and give us the opportunity to show you what a thermal flow measurement company with award-winning products can do for your application needs!

FT4X Insertion & Inline

ft4x Awards.png

Common Features for Fox Thermal Model FT4X Flow Meter:

  • Measures process gas flow rate/total and temperature

  • Insertion probes (for 1.5" - 70" pipes); Inline flow bodies with NPT ends (1.5" - 3" pipes); Inline 150# & 300# Flanged flow bodies (1.5" - 6" pipes)

  • Equipped with the 2nd Generation DDC-Sensor™ (Direct Digitally Controlled)

  • Gas-SelectX® expanded gas selection menu. Choose from available list of gases/gas mixes to measure flow. NIST-traceable calibration

  • Advanced Data Logger with Real Time Clock and 40 24-Hour daily totals

  • Settable Contract Time defines Contract Day

  • Optional HART and RS485 Modbus communication protocols

  • Calibration Validation with the CAL-V™ test

  • 24 VDC in local or remote enclosures

FT4A Insertion & Inline

Fox FT4A Thermal Mass Gas Flowmeter

Common Features for Fox Thermal Model FT4A Flow Meter:

  • Measures process gas flow rate/total and temperature

  • Insertion probes (for 1.5" - 70" pipes); Inline flow bodies with NPT ends (¾" - 3" pipes); Inline 150 lb. & 300 lb. Flanged flow bodies (¾" - 6" pipes)

  • Equipped with the 2nd Generation DDC-Sensor™ (Direct Digitally Controlled)

  • Gas-SelectX® expanded gas selection menu. Choose from available list of gases/gas mixes to measure flow. NIST-traceable calibration

  • One standard 4-20mA output proportional to mass flow rate; HART communication option

  • Second output can be ordered for pulse/alarm or RS485 Modbus RTU

FT3 Insertion & Inline

Fox FT3 Thermal Mass Gas flowmeter

Common Features for Fox Thermal Model FT3 Flow Meter:

  • Measures process gas flow rate/total and temperature

  • Equipped with the Power Pro™ thermal mass flow sensor

  • One discrete input to reset total or select a different calibration on 2 gas curves

  • Optional HART and RS485 Modbus communication protocols

  • Calibration Validation with the CAL-V™ and Zero CAL-CHECK® features.

  • Wide measurement range, 100:1 Typical Turndown

  • 24 VDC or optional 100 to 240VAC in local or remote enclosures

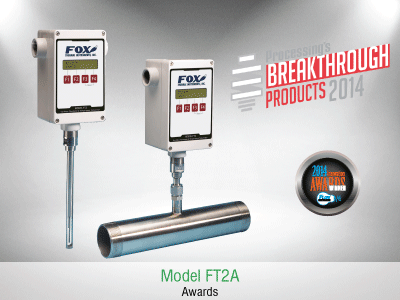

FT2A Insertion & Inline

Fox FT2A Thermal Mass Gas flowmeter

Common Features for Fox Thermal Model FT2A Flow Meter:

  • Measures process gas flow rate/total and temperature

  • Standard USB port, optional BACnet MS/TP, RS485 Modbus, Profibus-DP, DeviceNet, or Ethernet Modbus TCP

  • Equipped with the Power Pro™ thermal mass flow sensor

  • 4-20mA output proportional to mass flow rate

  • FM and FMc approved for Class I, II, III, Div 2, Groups A, B, C, D, E, F, G, T4 hazardous locations; NEMA 4X approved; Remote NEMA 4X electronics enclosure with explosion proof sensor j-box.

  • 24 VDC or optional 100 to 240VAC in local or remote enclosures

FT1 Insertion & Inline

Fox Model FT1Thermal Mass gas flowmeter

Common Features for Fox Thermal Model FT1 Flow Meter:

  • Measures process gas flow rate/total and temperature

  • Insertion probes (for 1.5" - 70" pipes); Inline flow bodies with NPT ends (¾" - 3" pipes); Inline 150 lb. Flanged flow bodies (¾" - 6" pipes)

  • Equipped with the DDC-Sensor™ (Direct Digitally Controlled)

  • Gas-SelectX® gas selection menu. Choose from available list of gases/gas mixes to measure flow. NIST-traceable calibration

  • Calibration Validation with the Zero CAL-CHECK® feature.

  • 10-30 VDC in local enclosures

You Have A Goal...Is Your Process Holding You Back?

Boiler and Combustion gas flow measurement

Boilers & Furnaces



Fox Thermal Flare gas flow meters

Flares



compressed air flowmeter

Air Compressors & Dryers



Storage well gas flowmeters

Storage Fields



Do you have questions on how to reduce process gas costs?       Download  "4-Mass Flow Metering Solutions" for answers

Do you need tips that enhance process monitoring?  Download  the "10-Tips that enhance process monitoring" for answers
